Home / Falcon Products / Raptor 9000 SV

Raptor 9000 SV

Request Literature

Request a Quote
Available for Rent
  • Description
  • Specs
  • Accessories

When it comes to effectiveness and productivity, the Raptor 9000 SV stands out from its competitors. It uses the same Intelligent Boiler Technology as our industry-leading Peregrine Series of Steam Generators, letting the operator know in advance when it’s time to perform a descaling procedure. This 9000 Watt steamer has a dual-boiler (2x4500W) arrangement that provides up to 13lb/hr of Dry Vapor Steam Power. Operating at a constant 145 PSI and 356°F with no decrease in performance over prolonged use, this unit is the champion dirt hunter!

It has dual reservoirs that allow you to introduce chemicals through steam injection into the cleaning process. This increases the effectiveness of the cleaners as well as the cleaning process. The unit also has the ability to introduce “wet steam” when a greater impact is needed for the heaviest soil build up. With three different steam output levels, YOU get to choose how and when to use them based on your application and needs. The versatility of the Raptor 9000 SV is unparalleled in the industry.

On top of all of this, the Raptor 9000 SV incorporates a 1200 Watts/HEPA Filter vacuum making it easy and convenient for the operator to recover leftover residue while cleaning. To round up the previous features described, this unit comes with a complete set of tools for a wide variety of applications, making the Raptor 9000 SV a formidable industrial steam generator and vacuum combination.

Double Boiler

Double Boiler

Power Phase
3
Voltage (V) - (Amps)
480 - 15
Frequency (Hz)
60
Power Cable Length (ft)
20
Max Power (W)
9850
Time before Start (min)
3 - 4
Noise Level (db)
<85
Low Water Warning
Yes
Boiler Capacity (qt.)
2qt. - dual
Boiler Material
Stainless Steel
Boiler Power Usage (W)
2x (1500x3)
Boiler Pressure (psi)
145
Continuous Water Refill
Yes
Power of Water Pump (W)
110V + 48W
Electronic Display for Work Functions
Yes
Boiler Download Cap
Yes
Steam Pressure in Boiler (°F)
356
Safety Switch Temperature (°F)
392
Steam Supply (lb/hour)
10 - ­13
Adjustable Steam Supply Regulation
Yes
Steam Temperature at Nozzle (°F)
302
Water Tank Material
Polyethylene
Water Tank Capacity -2ea. (gal)
1.3 + 1.3
Water Level Sensor
Yes
Detergent Supply (gal)
Dual 1.3
Detergent Supply Regulation
Fully Variable
Power Detergent Pump (W)
48 (2x)
Vacuum
Yes
Vacuum Motor Type
By-Pass
Vacuum Motor Power (W)
1200
Vacuum Type of Filter
Paper Cartridge
Capacity of Vacuum Recovery Tank (gal)
2
Vacuum HEPA Filter
Yes
Vacuum Mechanical Float shut - off
Yes
Tools Included
Yes
Weight
143 lbs
Shipping Weight
250 lbs
Dimensions (L x W x H)
37” X 19” X 41”
Shipping Dimensions (L x W x H)
46" x 32" x 49"
Steam & Vacuum Hose, 10′
Multi-Surface Tool
Brush Attachment for Multi-Surface Tool

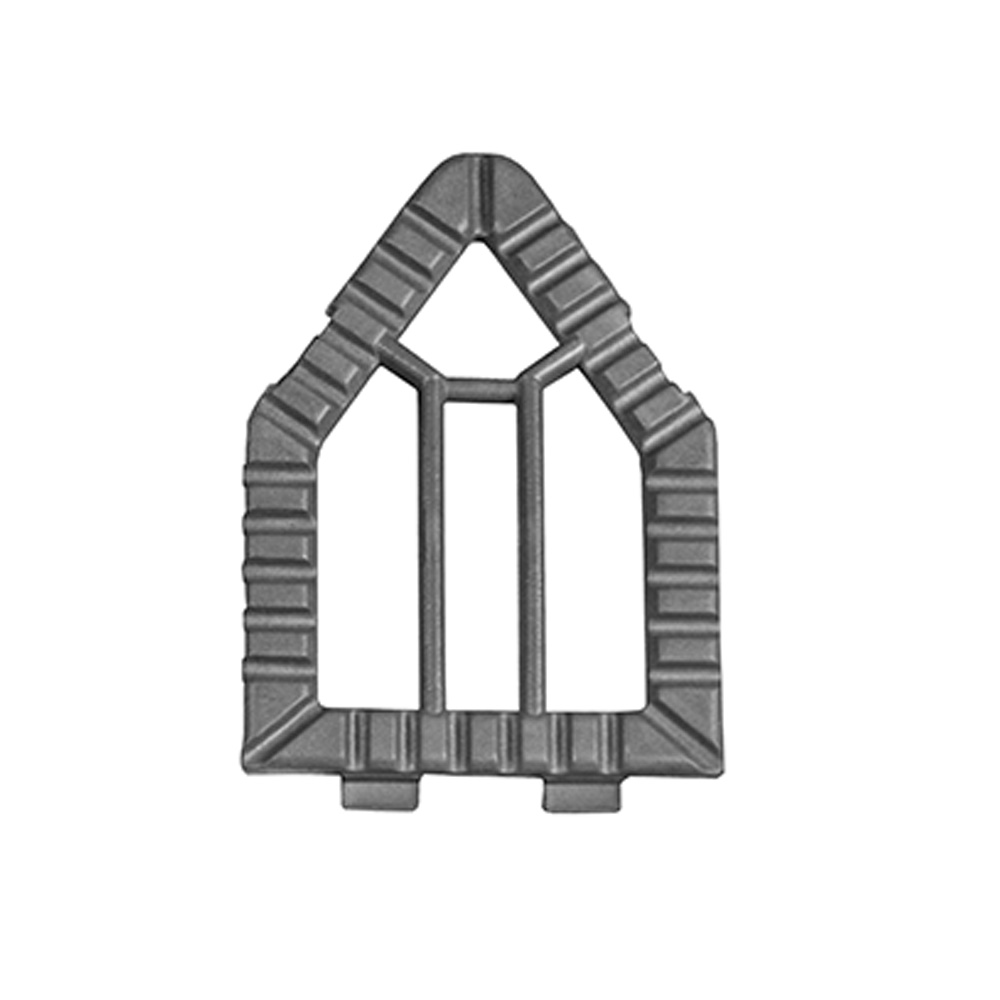

Multi-Surface Tool Glider Plate

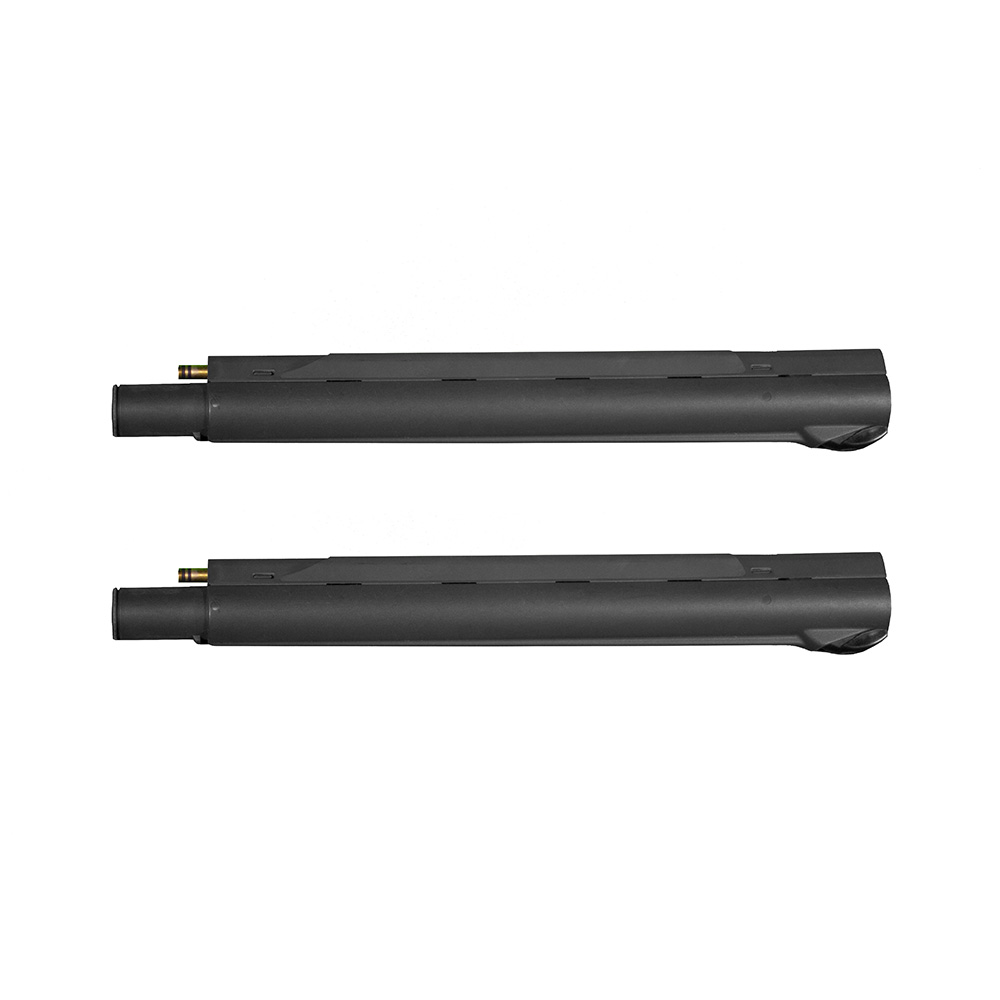

Steam & Vacuum Extension Tubes (2)
Detail Cleaning Wand 10.5″ Steam & Vacuum
Floor Tool, Standard, 12″
Glider Plate for Standard Floor Tool, 12″
Squeegee Cartridge for Standard Floor Tool, 12″
Upholstery Tool
Brush Attachment for Upholstery Tool
Squeegee Attachment for Upholstery Tool
Detail Cleaning Wand, 3.5″ Steam & Vacuum
Detail Steam Nozzle Specialty Steam & Vacuum, 1 Hole
Detail Steam & Vacuum Specialty Nozzle, 3 Hole
Vacuum Specialty Detail Nozzle, Narrow
Vacuum Specialty Detail Nozzle, Wide
Steam & Vacuum Specialty Window Squeegee, 5″
Steam & Vacuum Window Squeegee 10″

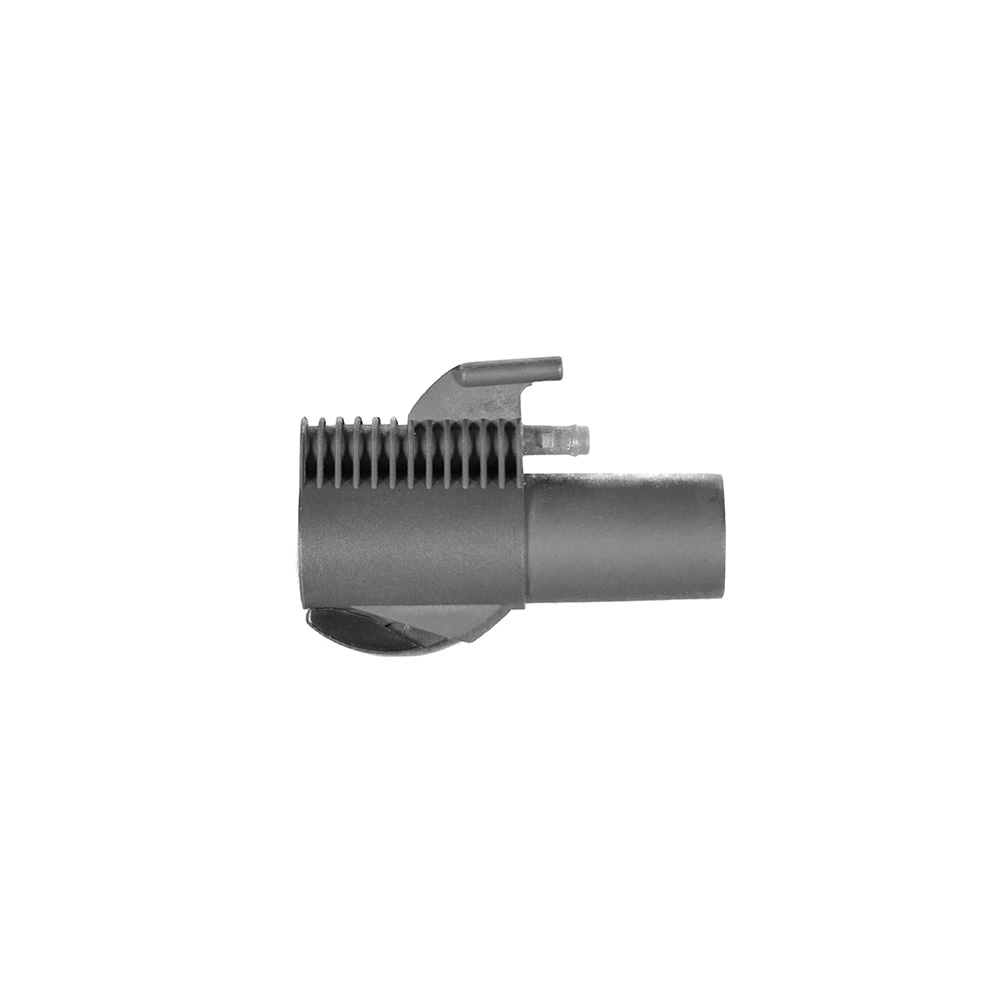

Adapter for Steam & Vacuum Tools for Restroom kit
Floor Tool, Large, 16″ for Restroom Kit
Bristle Strip for Large Floor Tool, 16″ for Restroom Kit
Squeegee Cartridge for Large Floor Tool, 16″ for Restroom Kit
Carpet Cleaning Floor Tool, 10″ Steam & Vacuum Specialty
Squeegee Attachment for Carpet Tool, 10″ Steam & Vacuum Specialty
Squeegee and Brush Attachment for Carpet Tool, 10″ Steam & Vacuum Specialty
Triangle Brush for Fitted Detail Wand, 3 Hole
Round Brush for Fitted Detail Wand, 1 Hole
Large Brass Brush, 2.36″ diameter
Large Nylon Brush, 2.36″ diameter
Large Stainless Steel Brush, 2.36″ diameter
Medium Brass Brush, 1.5″ diameter
Medium Nylon Brush, 1.5″ diameter
Medium Stainless Steel Brush, 1.5″ diameter
Small Brass Brush, 1.13″ diameter
Small Nylon Brush, 1.13″ diameter
Small Stainless Steel Brush, 1.13″ diameter
